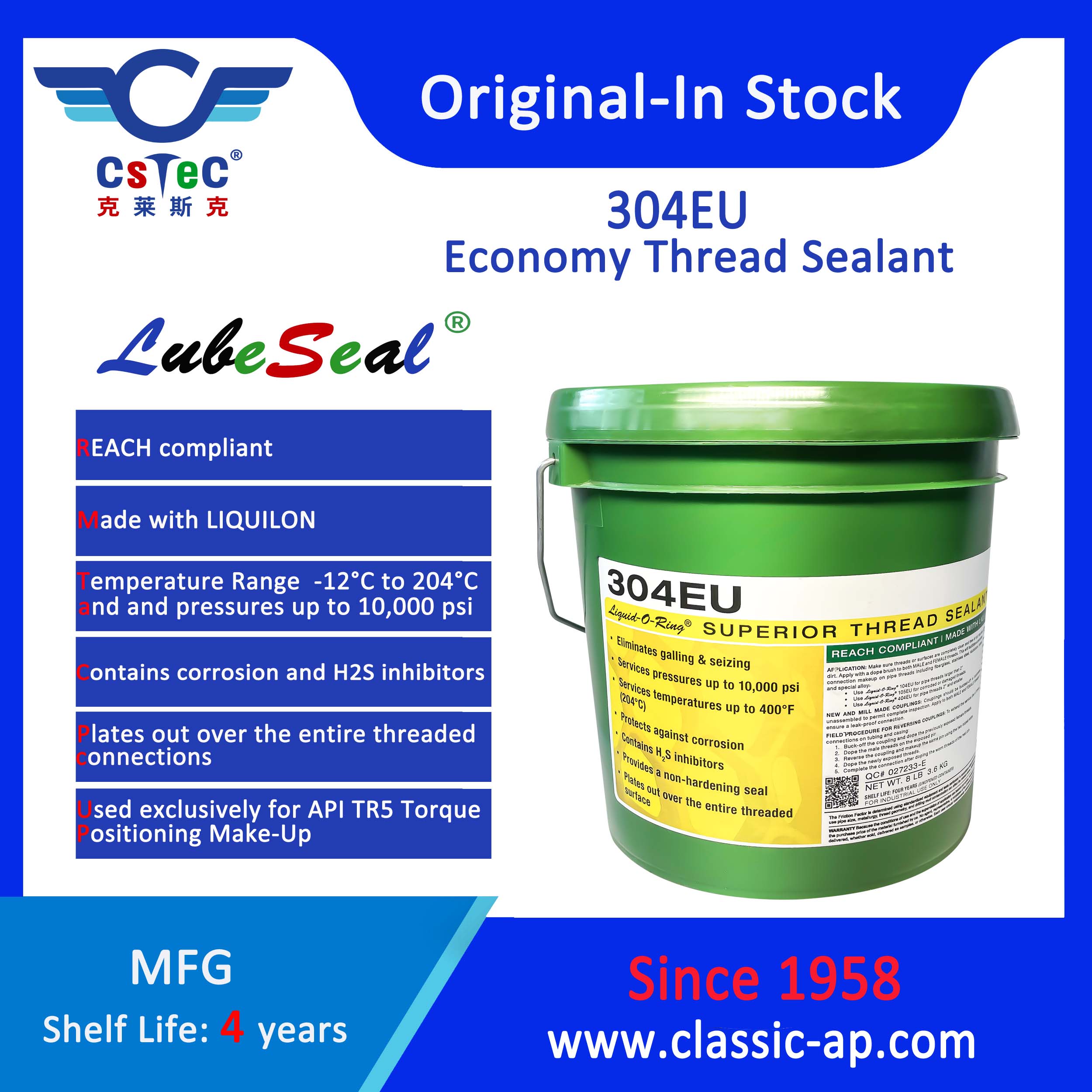

LubeSeal 304EU Economy Thread Sealant, an economical grade compound, is made with LIQUILON for application to tubing, casing, and large diameter size pipe. It performs well in cold weather applications. LubeSeal 304EU Economy Thread Sealant seals up to 10,000 psi and services temperatures up to 400°F (204°C). LubeSeal 304EU Economy Thread Sealant is used exclusively for API TR5 Torque Positioning Make-Up.
LubeSeal 304EU Economy Thread Sealant may be used as a running compound for downhole service due to its corrosion and H2S inhibitors.
BENEFITS
▪ REACH compliant
▪ Made with LIQUILON
▪ Lead-free
▪ Excellent performance in cold weather
▪ Contains corrosion and H2S inhibitors
▪ Non-hazardous
▪ Economical
▪ Services temperatures to 400°F (204°C) and pressures up to 10,000 psi
▪ Used exclusively for API TR5 Torque Positioning Make-Up
▪ Provides a non-hardening seal
▪ Plates out over the entire threaded connection
APPLICATION
LubeSeal 304EU Economy Thread Sealant requires no mixing, dilution or thinning prior to application. It is applied with a dope brush to both male and female threads. LubeSeal 304EU Economy Thread Sealant is an economical grade for application to tubing, casing, and large diameter pipe. LubeSeal 304EU Economy Thread Sealant is especially effective on 8 Round or Buttress connections, as well as on many premium connections. LubeSeal 304EU Economy Thread Sealant provides thread seal for premium connections forming a double seal along with the metal-to-metal seal.
TYPICAL OBSERVATIONS
Color: Brown
Texture: Rough, Grainy
Active Component: LIQUILON
Manufacturing Process: Fluorination
Density, lb/gal @ 77°F (25°C): 8.45
Specific Gravity @ 77°F (25°C):1.012
Dropping Point, ASTM D-2265: >500°F (>260°C)
Flash Point, ASTM D-92: >400°F (>204°C)
Penetration, ASTM D-217
worked @ 77°F (25°C): 295 – 305
Base Oil Viscosity
cSt @ 40°C (104°F): 360
cSt @ 100°C (212°F): 21
Water Washout Characteristics
ASTM D-1264 @ 100°F (38°C): Nil
Evaporation Loss, ASTM D-972
@ 210°F (98°C): 1.4
Oil Separation, ASTM D-1742 @ 77°F (25°C): Nil
Salt Spray Test, ASTM B-117: 2000+ hours
Friction Factor, API RP 5A3 ANNEX I: 0.9
Temperature Range: 10°F to 400°F (-12°C to 204°C)
Shelf Life (unopened container): Four years
